OpenResty Lua脚本实战反爬虫限制IP访问频率

home 编辑时间 2022/10/19

![](/api/file/getImage?fileId=634f60bfda740500130155d6)

## 前言
结合上一篇 [OpenResty yum 方式安装 支持 CentOS 7和8](https://leanote.zzzmh.cn/blog/post/admin/634e1094da74050013015530)
这一篇学习 `OpenResty` 最重要的一个部分 `Lua` 脚本
实战写一个限制IP频率等简单反爬虫脚本
先说明这样的脚本网上有很多例子，随便 `Ctrl + C` 就能实现这功能，但我希望的是学会 `Lua` 语法，以便以后自由实现各种功能

## 折腾
为防止搞奔溃线上环境，这一篇仅在本地docker中完成编写和测试

**Docker安装OpenResty**
```shell
docker run -d -p 8000:80\
 -e "TZ=Asia/Shanghai"\
 -m 200M --oom-kill-disable --memory-swap=-1\
 --name openresty\
 openresty/openresty
```

访问 [localhost:8000](http://localhost:8000/)

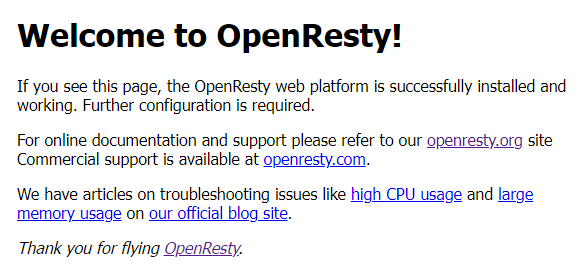

看到下面这个画面说明启动成功
![](/api/file/getImage?fileId=634f63dbda740500130155d9)

接下来遇到一个问题，操作openresty内部的文件不太方便，这里选择复制内部文件到外面，再重新开容器映射到里面
(我这里外面是linux系统的虚拟机)
```shell
# 复制内部目录到外部 停止并删除容器
docker cp openresty:/usr/local/openresty /home/docker/
sudo chmod -R 777 openresty
docker stop openresty
docker rm openresty

# 重新启动容器 将外部目录映射给内部 这里顺便把redis和mysql关联一下
docker run -d -p 8000:80\
 -e "TZ=Asia/Shanghai"\
 -m 200M --oom-kill-disable --memory-swap=-1\
 -v /home/docker/openresty:/usr/local/openresty\
 --link mysql\
 --link redis\
 --name openresty\
 openresty/openresty
```

到这里还发现一个小问题，直接操作 `nginx.conf` 没效果，后来发现容器内部有一个 `default.conf` 需要先删除
```shell
docker exec -it openresty bash
cd /etc/nginx/conf.d/
rm -f default.conf
```

至此 就可以在 `/home/docker/openresty/` 目录下操作，然后浏览器访问 [localhost:8000](http://localhost:8000/)，看效果，有些操作需要重启生效

找到nginx配置文件，稍微精简了一下
`/home/docker/openresty/nginx/conf/nginx.conf`
```shell
user root;
worker_processes 8;
events {
 worker_connections 1024;
}
http {
 include mime.types;
 default_type text/html;
 keepalive_timeout 65;
 include /etc/nginx/conf.d/*.conf;

 server {
 listen 80;
 server_name localhost;
 location / {
 root html;
 index index.html index.htm;
 }
 error_page 500 502 503 504 /50x.html;
 location = /50x.html {
 root html;
 }
 }
}
```

修改后需要重新加载配置文件才会生效
```shell
# 进入容器
docker exec -it openresty bash
# 测试配置文件是否正确
openresty -t
# 如果没有异常 可以重新加载配置文件
openresty -s reload
```

先实现个helloword证明已跑通

在nginx目录下新建一个lua文件夹
再在文件夹内新建一个lua文件 `hello.lua`
```shell
server {
 location / {
 # 执行lua脚本文件
 content_by_lua_file lua/hello.lua;
 # root html;
 # index index.html index.htm;
 }
 ...
}
```

`nginx/lua/hello.lua`
```lua
ngx.say('Hello Lua!');
```

最后在容器里重新加载配置文件
```shell
docker exec -it openresty bash
openresty -s reload
```

访问[localhost:8000](http://localhost:8000/)
即可看到 `Hello Lua!`

接下来可以直接快进到写本篇主题：反爬虫的脚本实现

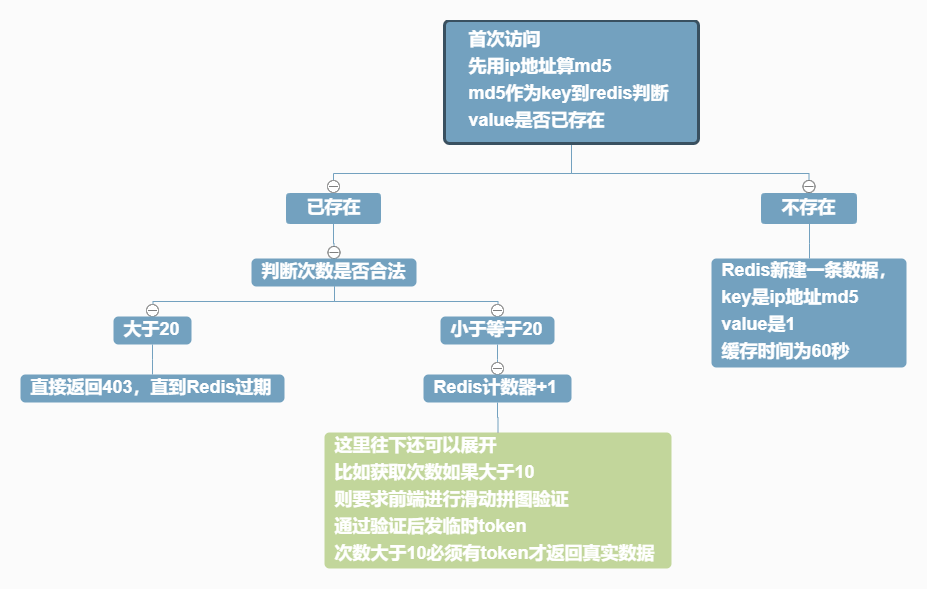

思路如下图
(例子用的是60秒20次的限制，也可以改成任意时间任意次数)
![](/api/file/getImage?fileId=634f7ad3da740500130155e7)

`nginx.conf`
```shell
server {
    location / {
        # 执行lua脚本文件
        content_by_lua_file lua/access_limit.lua;
        # root   html;
        # index  index.html index.htm;
    }
    ...
}
```

**这里需要注意！**
`local redis = require "resty.redis_iresty"`
这行代码默认是跑不通的，因为不存在这个库，这是一位up主自己实现并封装的库，需要预先加入到resty文件夹中。
参考 [Redis 接口的二次封装 (gitbooks)](https://moonbingbing.gitbooks.io/openresty-best-practices/content/redis/out_package.html)
具体操作是
在目录 `openresty/lualib/resty/` 下
新增一个文件 `redis_iresty.lua`
内容如下，注意：其中redis连接的IP地址和PORT端口，需要改为你实际情况的
```lua
local redis_c = require "resty.redis"
local ok, new_tab = pcall(require, "table.new")
if not ok or type(new_tab) ~= "function" then
 new_tab = function (narr, nrec) return {} end
end
local _M = new_tab(0, 155)
_M._VERSION = '0.01'
local commands = {
 "append", "auth", "bgrewriteaof",
 "bgsave", "bitcount", "bitop",
 "blpop", "brpop",
 "brpoplpush", "client", "config",
 "dbsize",
 "debug", "decr", "decrby",
 "del", "discard", "dump",
 "echo",
 "eval", "exec", "exists",
 "expire", "expireat", "flushall",
 "flushdb", "get", "getbit",
 "getrange", "getset", "hdel",
 "hexists", "hget", "hgetall",
 "hincrby", "hincrbyfloat", "hkeys",
 "hlen",
 "hmget", "hmset", "hscan",
 "hset",
 "hsetnx", "hvals", "incr",
 "incrby", "incrbyfloat", "info",
 "keys",
 "lastsave", "lindex", "linsert",
 "llen", "lpop", "lpush",
 "lpushx", "lrange", "lrem",
 "lset", "ltrim", "mget",
 "migrate",
 "monitor", "move", "mset",
 "msetnx", "multi", "object",
 "persist", "pexpire", "pexpireat",
 "ping", "psetex", "psubscribe",
 "pttl",
 "publish", --[[ "punsubscribe", ]] "pubsub",
 "quit",
 "randomkey", "rename", "renamenx",
 "restore",
 "rpop", "rpoplpush", "rpush",
 "rpushx", "sadd", "save",
 "scan", "scard", "script",
 "sdiff", "sdiffstore",
 "select", "set", "setbit",
 "setex", "setnx", "setrange",
 "shutdown", "sinter", "sinterstore",
 "sismember", "slaveof", "slowlog",
 "smembers", "smove", "sort",
 "spop", "srandmember", "srem",
 "sscan",
 "strlen", --[[ "subscribe", ]] "sunion",
 "sunionstore", "sync", "time",
 "ttl",
 "type", --[[ "unsubscribe", ]] "unwatch",
 "watch", "zadd", "zcard",
 "zcount", "zincrby", "zinterstore",
 "zrange", "zrangebyscore", "zrank",
 "zrem", "zremrangebyrank", "zremrangebyscore",
 "zrevrange", "zrevrangebyscore", "zrevrank",
 "zscan",
 "zscore", "zunionstore", "evalsha"
}
local mt = { __index = _M }
local function is_redis_null( res )
 if type(res) == "table" then
 for k,v in pairs(res) do
 if v ~= ngx.null then
 return false
 end
 end
 return true
 elseif res == ngx.null then
 return true
 elseif res == nil then
 return true
 end

return false
end
-- 这里要改为你实际情况的地址和端口
function _M.connect_mod( self, redis )
    redis:set_timeout(self.timeout)
    return redis:connect("172.0.0.1", 6379)
end
function _M.set_keepalive_mod( redis )
    -- put it into the connection pool of size 100, with 60 seconds max idle time
    return redis:set_keepalive(60000, 1000)
end
function _M.init_pipeline( self )
    self._reqs = {}
end
function _M.commit_pipeline( self )
    local reqs = self._reqs

if nil == reqs or 0 == #reqs then
        return {}, "no pipeline"
    else
        self._reqs = nil
    end
    local redis, err = redis_c:new()
    if not redis then
        return nil, err
    end
    local ok, err = self:connect_mod(redis)
    if not ok then
        return {}, err
    end
    redis:init_pipeline()
    for _, vals in ipairs(reqs) do
        local fun = redis[vals[1]]
        table.remove(vals , 1)

fun(redis, unpack(vals))
    end
    local results, err = redis:commit_pipeline()
    if not results or err then
        return {}, err
    end
    if is_redis_null(results) then
        results = {}
        ngx.log(ngx.WARN, "is null")
    end
    -- table.remove (results , 1)
    self.set_keepalive_mod(redis)

for i,value in ipairs(results) do
        if is_redis_null(value) then
            results[i] = nil
        end
    end
    return results, err
end
function _M.subscribe( self, channel )
    local redis, err = redis_c:new()
    if not redis then
        return nil, err
    end
    local ok, err = self:connect_mod(redis)
    if not ok or err then
        return nil, err
    end
    local res, err = redis:subscribe(channel)
    if not res then
        return nil, err
    end
    res, err = redis:read_reply()
    if not res then
        return nil, err
    end
    redis:unsubscribe(channel)
    self.set_keepalive_mod(redis)

return res, err
end
local function do_command(self, cmd, ... )
    if self._reqs then
        table.insert(self._reqs, {cmd, ...})
        return
    end
    local redis, err = redis_c:new()
    if not redis then
        return nil, err
    end
    local ok, err = self:connect_mod(redis)
    if not ok or err then
        return nil, err
    end
    local fun = redis[cmd]
    local result, err = fun(redis, ...)
    if not result or err then
        -- ngx.log(ngx.ERR, "pipeline result:", result, " err:", err)
        return nil, err
    end
    if is_redis_null(result) then
        result = nil
    end
    self.set_keepalive_mod(redis)
    return result, err
end
for i = 1, #commands do
    local cmd = commands[i]
    _M[cmd] =
            function (self, ...)
                return do_command(self, cmd, ...)
            end
end
function _M.new(self, opts)
    opts = opts or {}
    local timeout = (opts.timeout and opts.timeout * 1000) or 1000
    local db_index= opts.db_index or 0

return setmetatable({
 timeout = timeout,
 db_index = db_index,
 _reqs = nil }, mt)
end
return _M
```

这里需要重启就不说了，反正每次改完 `nginx.conf` 或引用的 `lua` 文件，都需要 `openresty -s reload` 一下

接下来 访问 [localhost:8000](http://localhost:8000/) 查看最终效果
前200次是 状态200 展示 key + value + ttl
第201次开始是 状态500 错误页面
之后无论如何访问都是500
直到1分钟计时结束
再次访问回到200 展示 key + value + ttl
大功告成

补充发现的2个小问题

1 首次访问数值是1，之后每次访问都是+2，直到结束， 这个问题藏得挺深的，通过查看openresty日志才能看到
```shell
# 查看日志命令
docker logs openresty

# 返回的日志
10.0.2.2 - - [20/Oct/2022:14:18:27 +0800] "GET / HTTP/1.1" 200 55 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36"
10.0.2.2 - - [20/Oct/2022:14:18:27 +0800] "GET /favicon.ico HTTP/1.1" 200 55 "http://localhost:8000/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36"
10.0.2.2 - - [20/Oct/2022:14:18:28 +0800] "GET / HTTP/1.1" 200 55 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36"
10.0.2.2 - - [20/Oct/2022:14:18:29 +0800] "GET /favicon.ico HTTP/1.1" 200 55 "http://localhost:8000/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36"
```
可以看到每次访问都产生2条，除了访问根目录，还会请求一次 `favicon.ico` 网页图标，而我们nginx的配置中 / 为接受所有请求，所有会立即被触发2次

**最终打死不改版**
`nginx.conf`
```shell
server {
    location / {
        # 执行lua脚本文件
        content_by_lua_file lua/access_limit.lua;
        # root   html;
        # index  index.html index.htm;
    }
    location /favicon.ico {
        return 404;
    }
    ...
}
```

`access_limit.lua`
```lua
local redis_iresty = require "resty.redis_iresty"
local redis = redis_iresty:new()
local key = ngx.md5(ngx.var.remote_addr)
local count = redis:get(key);
if count then
 -- 大于单位时间的限制次数则给与500错误 测试暂定200次60秒
 if tonumber(count) > 200 then
 ngx.exit(ngx.HTTP_INTERNAL_SERVER_ERROR)
 else
 -- 次数仍在正常范围则只 +1 记录次数
 redis:incr(key)
 end
else
 -- 首次访问次数记为1
 redis:incr(key)
 -- 过期时间60秒
 redis:expire(key, 60)
end
-- 在测试页面打印key value ttl 3个值
ngx.say(key..' '..redis:get(key)..' '..redis:ttl(key))
```

2 Win 11 VirtualBox下安装的Docker，居然是光盘启动的系统，磁盘只是一个挂载，如果把数据存在home目录下重启就会消失，怪不得只需要1.8G，我前文是把Docker中的数据映射到/home/docker下，后来发现重启就消失了，就是这个原因，后续改为映射到 `/mnt/sda1/var/lib/docker/data`，其中data是新建文件夹，至此重启也不会丢失，但有个先后次序问题，导致openresty不能在这里开机启动，还需要手动start一下

顺便怀念一波在Linux下开发的日子，就没有这种破事，同一台硬件，速度翻2~3倍，指哪打哪。

## END
参考
[OpenResty全套课程 (bilibili)](https://www.bilibili.com/video/BV1nU4y1x7Lt)
[分布式--OpenResty+lua+Redis实现限流与防爬虫 (csdn)](https://blog.csdn.net/qq_24000367/article/details/125536798)
