关于2024 如何在 IntelliJ IDEA 2023 中开发 Java 8 Springboot 2.x 的项目

home 编辑时间 2024/06/06

![](/api/file/getImage?fileId=66613b3dda7405001405683d)

## 前言

众所周知 `IntelliJ IDEA 2023.2` 新建 `springboot` 项目时，只能新建 `springboot 3.x`，并且只支持 `JDK17` 以上版本

虽然我并不是祖宗之法不可变的保守派，但我非常偶尔的时候也会遇到需要开发一个 `JDK8` `Srpingboot 2.x` 的需求，IDEA 这样一刀切，逼得我只能自己手动新建项目了

其实最早在学Java的时候，新建项目都是普通的本地项目，自己加jar包依赖，自己写配置文件的，后来有了maven，就可以快速引入依赖，并且自动解决依赖链的问题。后来有了Springboot，配置文件也可以不写少写。现在无非就是退回去，新建一个Maven项目，然后手动配置Springboot的部分。

## 折腾

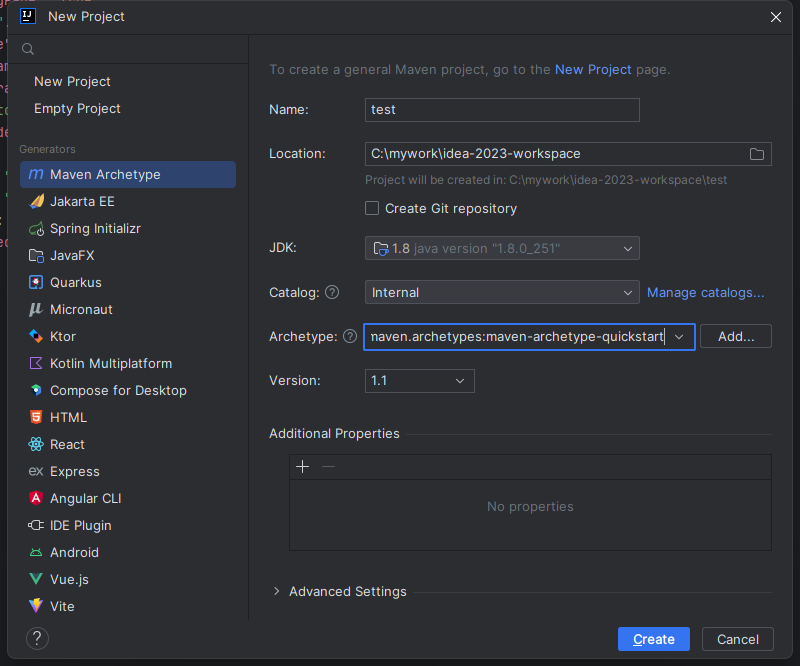

1. 新建Maven项目
JDK选择1.8
Archetype选择quickstart
![](/api/file/getImage?fileId=66612608da7405001405679c)

2. 根据自己习惯 改变src下的目录结构
如图我删了test目录
新建了resources 并且在Project Structure中配置为Resources类型
![](/api/file/getImage?fileId=66612db0da740500140567e4)

附上一个好看的banner.txt
```txt
 .::::::`.::::::::::..
 .''``````.:::::::::::::::::
 .:',ere$ze c :::::::::::::::::::
 ,'` e$$$$$$$-K eeeu...`````:::::::::
 .zd>^leeu^R$%:FJ$$$$$$$$$$e.. ``::::::
 .ed$$$$4$$$$$P-u@" ""?????R$$$$$$$hc. ``:::
 .e$$F"..: P??7loF .:::::::::::.."""?R$$$e. `:.
 zF".:::::::`"""'.:::::::::::::::::::::.`"?$$e.`
 .::::::::::::':::::::::::::::::::::::::::::.`"=.
 .:::::::::::::` `:::::::::::::::::::::::::::::::..
 .:::::::::::::` ud$ec. ``:::::::::::::::::::::::::::::.
 .:::::::::::`` .zd$$$$$$$ec.. ```::::::::::::::::::::::::::
 .:::::::::::` "??$$$$$$$$$$$P ``::::::::::::::::::::::
 ::::::::::` .. $$*. ^$$$$$$$$$$ .e$**"" =e=.. ``::::::::::::::::.
 ::::::::: :::. . ^ $$P$$$$$$$$$$F .'$$$N4$$L'::. `:::::::::::::::
 `::::::` :::::: $ '$$4$$$$$$$$% - : $$$F$$$$u`::::::. `:::::::::::.
 :::::: :::::: .^m.-.e.$'$$$$$$$P. -)z$?Cd$$$$$u `:::::::. `:::::::::
 `::::::::::: J$buFh52d4$$$$$$$LcccccCz$$$$$$$$": `::::::::..:::::::::
 `::::::::: $$$$$$$$PJ$$$$$$$$$$$$$$$$$$$$$F.d$$. `::::::::::::::::`
 `:::::: ?$$$$$$$F$$$$$$$$$$$$$$$$$$$$P x$$$$$$L `::::::::::::::
 ``:: dN ?$$$$$$N2$$?3$$$$$$$$$$$$$$P dP\$$$$$$$u `::::::::::::
 `:'" $.`R$$P???$$P??????"$$$$$$$$ 9".d$$$$$$$$b.`::::::::::
 :: R$$. ?$$r `..;; . $$$$$$$F"'$'$J?$$$$$$$f ::::::::
 `:.^""""""."?$`niiiodfu$$$$$F"z$$ ^""~""""`..:::: ::::::
 `::::::::::`?beCCbe$$$$""cd$$$$i .`::::::::::::. `:::`
 ``:::::::::`?$$$P"',cd$$$$$$$$r?k :::::::::::`.:::`
 ```::::::::: 4$$$$$$$$$$$$$"d$ ``::::::::::::`
 ``::: . $$$$$$$$$$$$fJ$F4$e.``:::::::`
 dR `$$$$$$$$$$"x$$ d$$$$eu,.```
 .e$ $E b?$$$$$$$".d$$ d$$$$$$$$$$$e..
 ..ee$$$$$ $$k`$$$$$$".d$$".$$$$$$$$$$$$$$$$$$hec.
 .ze$$$$$$$$$$$b"$$heeeeeud$R" e$$$$$$$$$$$$$$$$$$$$$$$$$e.
 z$$$$$$$$$$$$$$$$$$h`?c""""J$R z$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
 .ee$$$$$$$$$$$$$$$$$$$$$$hc"xJ>=".zd$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
 .d$$$$$$$$$$$$$$$$$$$$$$$$$$$$he$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
```

3. 配置一下maven
这里加了
springboot redis 开发环境中的tomcat mysql mybatisplus lombok apache工具箱等基础依赖
底部加了阿里云镜像maven加快速度
整体打war包，生产环境需要通过tomcat执行
版本选择截止今天最后一个springboot 2的版本 2.7.18

`pom.xml`
```xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>

<groupId>com.zzzmh</groupId>
 <artifactId>spring-boot-demo</artifactId>
 <packaging>war</packaging>
 <version>1.0.0</version>
 <name>spring-boot-demo</name>

<parent>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-parent</artifactId>
 <version>2.7.18</version>
 </parent>

<dependencies>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-web</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-data-redis</artifactId>
 </dependency>
 <dependency>
 <groupId>org.projectlombok</groupId>
 <artifactId>lombok</artifactId>
 <optional>true</optional>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-tomcat</artifactId>
 <scope>provided</scope>
 </dependency>
 <dependency>
 <groupId>com.mysql</groupId>
 <artifactId>mysql-connector-j</artifactId>
 <version>8.4.0</version>
 </dependency>
 <dependency>
 <groupId>com.baomidou</groupId>
 <artifactId>mybatis-plus-boot-starter</artifactId>
 <version>3.5.6</version>
 </dependency>
 <dependency>
 <groupId>org.apache.commons</groupId>
 <artifactId>commons-lang3</artifactId>
 <version>3.12.0</version>
 </dependency>
 <dependency>
 <groupId>commons-codec</groupId>
 <artifactId>commons-codec</artifactId>
 <version>1.15</version>
 </dependency>
 <dependency>
 <groupId>com.alibaba.fastjson2</groupId>
 <artifactId>fastjson2</artifactId>
 <version>2.0.33</version>
 </dependency>
 </dependencies>

<build>
 <finalName>${project.artifactId}</finalName>
 <plugins>
 <plugin>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-maven-plugin</artifactId>
 <configuration>
 <excludes>
 <exclude>
 <groupId>org.projectlombok</groupId>
 <artifactId>lombok</artifactId>
 </exclude>
 </excludes>
 </configuration>
 </plugin>
 </plugins>
 </build>

<repositories>
 <repository>
 <id>public</id>
 <name>aliyun nexus</name>
 <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
 <releases>
 <enabled>true</enabled>
 </releases>
 </repository>
 </repositories>
 <pluginRepositories>
 <pluginRepository>
 <id>public</id>
 <name>aliyun nexus</name>
 <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
 <releases>
 <enabled>true</enabled>
 </releases>
 <snapshots>
 <enabled>false</enabled>
 </snapshots>
 </pluginRepository>
 </pluginRepositories>
</project>
```

改完以后刷新一下maven依赖

4. 新建启动类
参考前文，我这里选择war包，所以启动类是按照war方式建
删除原本的 `App.java` 在同级新建2个启动类文件

`SpringBootDemoApplication.java`
```java
package com.zzzmh;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class SpringBootDemoApplication {
 public static void main(String[] args) {
 SpringApplication.run(SpringBootDemoApplication.class, args);
 }
}
```

`ServletInitializer.java`
```java
package com.zzzmh;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.servlet.support.SpringBootServletInitializer;
public class ServletInitializer extends SpringBootServletInitializer {
 @Override
 protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
 return application.sources(SpringBootDemoApplication.class);
 }
}
```

如果到这一步都配置正确，已经可以执行 `SpringBootDemoApplication` 的 `main` 方法启动试试看了，因为springboot 有默认配置，无配置文件也可以启动

启动后看到这样的控制台输出就说明启动成功了
```java
2024-06-06 12:03:29.902 INFO 17412 --- [ main] com.zzzmh.SpringBootDemoApplication : Starting SpringBootDemoApplication using Java 1.8.0_345 on ROG-G14 with PID 17412 (C:\mywork\idea-2023-workspace\spring-boot-demo\target\classes started by Administrator in C:\mywork\idea-2023-workspace\spring-boot-demo)
2024-06-06 12:03:29.905 INFO 17412 --- [ main] com.zzzmh.SpringBootDemoApplication : The following 1 profile is active: "light-dev"
2024-06-06 12:03:30.557 INFO 17412 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Multiple Spring Data modules found, entering strict repository configuration mode
2024-06-06 12:03:30.562 INFO 17412 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data Redis repositories in DEFAULT mode.
2024-06-06 12:03:30.580 INFO 17412 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 6 ms. Found 0 Redis repository interfaces.
2024-06-06 12:03:30.683 WARN 17412 --- [ main] o.m.s.mapper.ClassPathMapperScanner : No MyBatis mapper was found in '[com.zzzmh]' package. Please check your configuration.
2024-06-06 12:03:31.096 INFO 17412 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 8080 (http)
2024-06-06 12:03:31.102 INFO 17412 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2024-06-06 12:03:31.103 INFO 17412 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.83]
2024-06-06 12:03:31.269 INFO 17412 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2024-06-06 12:03:31.269 INFO 17412 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 1323 ms
2024-06-06 12:03:31.542 WARN 17412 --- [ main] ConfigServletWebServerApplicationContext : Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'dataSource' defined in class path resource [org/springframework/boot/autoconfigure/jdbc/DataSourceConfiguration$Hikari.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.zaxxer.hikari.HikariDataSource]: Factory method 'dataSource' threw exception; nested exception is org.springframework.boot.autoconfigure.jdbc.DataSourceProperties$DataSourceBeanCreationException: Failed to determine a suitable driver class
2024-06-06 12:03:31.545 INFO 17412 --- [ main] o.apache.catalina.core.StandardService : Stopping service [Tomcat]
2024-06-06 12:03:31.557 INFO 17412 --- [ main] ConditionEvaluationReportLoggingListener :
```

后面有一个这样的报错是正常的，因为还没配置JDBC的参数
```java
Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
2024-06-06 12:03:31.575 ERROR 17412 --- [ main] o.s.b.d.LoggingFailureAnalysisReporter :

***************************
APPLICATION FAILED TO START
***************************

Description:

Failed to configure a DataSource: 'url' attribute is not specified and no embedded datasource could be configured.

Reason: Failed to determine a suitable driver class

Action:

Consider the following:
	If you want an embedded database (H2, HSQL or Derby), please put it on the classpath.
	If you have database settings to be loaded from a particular profile you may need to activate it (the profiles light-dev are currently active).
```

相信能看到这里的人，应该都能自己写springboot的参数配置文件
这里只列举一个最简单基础的配置吧
开发环境一切从简就行，把数据库 用户名密码 还有 service目录改成你自己的 就OK了

`application.yml`
```yml
# 通用配置
spring:
 profiles:
 active: dev
 mvc:
 pathmatch:
 matching-strategy: ant_path_matcher
```

`application-dev.yml`
```yml
# 开发环境
server:
 port: 8080
 servlet:
 context-path: /demo

spring:
  redis:
    host: 127.0.0.1
    port: 6379
  servlet:
    multipart:
      max-file-size: 100MB
      max-request-size: 100MB
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/xxx?allowMultiQueries=true&useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&tinyInt1isBit=false&allowPublicKeyRetrieval=true
    username: xxxxxx
    password: xxxxxx

mybatis-plus:
  mapper-locations: classpath*:/mapper/*.xml
  type-aliases-package: com.zzzmh.service
  global-config:
    db-config:
      id-type: auto
      logic-delete-value: 1
      logic-not-delete-value: 0
      insert-strategy: not_null
      update-strategy: not_null
    banner: false
  configuration:
    map-underscore-to-camel-case: true
    cache-enabled: true
    call-setters-on-nulls: true

logging:
  level:
    org.springframework.web: trace
    org.mybatis: trace
```

## END
大功告成
收摊！
