Netty WebSocket 入门

home 编辑时间 2024/04/25

![](/api/file/getImage?fileId=6629ddd0da7405001403f5e0)
<br><br>
## 前言
头都要学秃了，真的难，建议非必要别学netty
官网：[https://netty.io/](https://netty.io/)
<br>
本文主要是观看以下BiliBili视频中P1 - P11学习笔记
[【Netty项目】这可能是B站唯一完整的Netty实战项目，2小时手把手带你用Netty开发IM在线聊天项目](https://www.bilibili.com/video/BV1Ua4y1r7vP)

<br><br>
## 折腾

#### ===> 基本款(能跑起来)
IDEA新建一个Maven项目
Archetype选择queststart

进入项目界面后需要稍作调整
在`File` - `Project Structure`中，确保每个地方的JDK都是17
在`Settings`中的Maven按自己实际情况优化一下，最好是用本地Maven

`pom.xml`
加入netty-all和fastjson2依赖
```xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.zzzmh</groupId>
    <artifactId>netty-demo</artifactId>
    <version>1.0.0</version>
    <packaging>jar</packaging>
    <name>netty-demo</name>
    <url>http://maven.apache.org</url>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.109.Final</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.fastjson2</groupId>
            <artifactId>fastjson2</artifactId>
            <version>2.0.49</version>
        </dependency>
    </dependencies>
</project>
```

<br><br>
**后端核心代码**
`WebSocketServer.java`
```java
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.stream.ChunkedWriteHandler;

public class WebSocketServer {

public static void main(String[] args) throws InterruptedException {
        EventLoopGroup boss = new NioEventLoopGroup();
        EventLoopGroup worker = new NioEventLoopGroup();
        ServerBootstrap bootstrap = new ServerBootstrap();
        bootstrap.group(boss, worker)
                .channel(NioServerSocketChannel.class)
                .childHandler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel socketChannel) throws Exception {
                        ChannelPipeline pipeline = socketChannel.pipeline();
                        pipeline.addLast(new HttpServerCodec())
                                .addLast(new ChunkedWriteHandler())
                                .addLast(new HttpObjectAggregator(1024 * 64))
                                .addLast(new WebSocketServerProtocolHandler("/"))
                                .addLast(new WebSocketHandler());
                    }
                });
        bootstrap.bind(7001).sync();
    }
}
```

`WebSocketHandler.java`
```java
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;

public class WebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame frame) throws Exception {
        System.out.println(frame.text());
    }
}
```

之后在IDEA中启动WebSocketServer的main方法即可启动Socket服务器端

<br><br>
客户端随便用html手搓个毛坯房版
`index.html`
```html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <title>Netty WebSocket Client Demo</title>
</head>
<body>

<input id="text" type="text"/>
<button onclick="send()">Send</button>
<button onclick="closeWebSocket()">Close</button>
<div id="message"></div>

const websocket = new WebSocket("ws://localhost:7001");

//连接发生错误的回调方法
    websocket.onerror = function () {
        setMessageInnerHTML("连接错误");
    };

//连接成功建立的回调方法
    websocket.onopen = function (event) {
        setMessageInnerHTML("已连接");
    }

//接收到消息的回调方法
    websocket.onmessage = function (event) {
        setMessageInnerHTML("已收到消息:" + event.data);
    }

//连接关闭的回调方法
    websocket.onclose = function () {
        setMessageInnerHTML("已断开");
    }

//监听窗口关闭事件，当窗口关闭时，主动去关闭websocket连接，防止连接还没断开就关闭窗口，server端会抛异常。
    window.onbeforeunload = function () {
        websocket.close();
    }

//将消息显示在网页上
    function setMessageInnerHTML(innerHTML) {
        document.getElementById('message').innerHTML += '<br>' + innerHTML;
    }

//关闭连接
    function closeWebSocket() {
        websocket.close();
    }

//发送消息
    function send() {
        const message = document.getElementById('text').value;
        setMessageInnerHTML("已发送消息:" + message)
        websocket.send(message);
    }
</script>
</body>
</html>
```

<br><br>

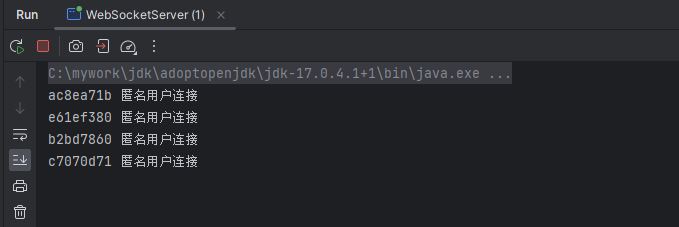

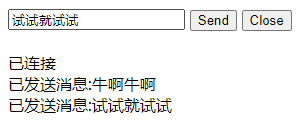

启动后效果如图
![](/api/file/getImage?fileId=6629e248da7405001403f625)
![](/api/file/getImage?fileId=6629e247da7405001403f624)

#### ===> 进阶款(能聊天)
过程略
直接上代码
后端一共4个类
`WebSocketServer.java`
```java
package com.zzzmh.websocket.server;

import com.zzzmh.websocket.server.handler.BaseWebSocketHandler;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.*;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import io.netty.util.concurrent.GlobalEventExecutor;

import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

public class WebSocketServer {

public static final Map<String, Channel> CHANNELS = new ConcurrentHashMap<>();

public static final ChannelGroup GROUP = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);

public static void main(String[] args) throws InterruptedException {
        EventLoopGroup boss = new NioEventLoopGroup();
        EventLoopGroup worker = new NioEventLoopGroup();
        ServerBootstrap bootstrap = new ServerBootstrap();
        bootstrap.group(boss, worker)
                .channel(NioServerSocketChannel.class)
                .childHandler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel socketChannel) throws Exception {
                        ChannelPipeline pipeline = socketChannel.pipeline();
                        pipeline.addLast(new HttpServerCodec())
                                .addLast(new ChunkedWriteHandler())
                                .addLast(new HttpObjectAggregator(1024 * 64))
                                .addLast(new WebSocketServerProtocolHandler("/"))
                                .addLast(new BaseWebSocketHandler());
                    }
                });
        bootstrap.bind(7001).sync();
    }
}
```

`ResultFrame.java`
```java
package com.zzzmh.websocket.server.utils;

import com.alibaba.fastjson2.JSONArray;
import com.alibaba.fastjson2.JSONObject;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import lombok.Data;

@Data
public class ResultFrame extends JSONObject {

public static TextWebSocketFrame ok(Integer code, Object data) {
        return new TextWebSocketFrame(JSONObject.of(
                "code", code,
                "msg", "success",
                "data", data
        ).toJSONString());
    }

public static TextWebSocketFrame ok(Integer code, JSONObject data) {
        return new TextWebSocketFrame(JSONObject.of(
                "code", code,
                "msg", "success",
                "data", data
        ).toJSONString());
    }

public static TextWebSocketFrame ok(Integer code, JSONArray data) {
        return new TextWebSocketFrame(JSONObject.of(
                "code", code,
                "msg", "success",
                "data", data
        ).toJSONString());
    }

public static TextWebSocketFrame error() {
        return error(500, "网络异常!");
    }

public static TextWebSocketFrame error(Integer code, String message) {
        return new TextWebSocketFrame(JSONObject.of(
                "code", code,
                "msg", message,
                "data", null
        ).toJSONString());
    }
}
```

`BaseWebSocketHandler.java`
```java
package com.zzzmh.websocket.server.handler;

import com.alibaba.fastjson2.JSONObject;
import com.zzzmh.websocket.server.WebSocketServer;
import com.zzzmh.websocket.server.utils.ResultFrame;
import io.netty.channel.Channel;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;

import java.util.Iterator;
import java.util.Map;

public class BaseWebSocketHandler extends ChannelInboundHandlerAdapter {

@Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        super.channelActive(ctx);
        WebSocketServer.GROUP.add(ctx.channel());
        System.out.println(ctx.channel().id().asShortText() + " 匿名用户连接");
    }

@Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        // 用户断开连接事件
        super.channelInactive(ctx);
        WebSocketServer.GROUP.remove(ctx.channel());
        Iterator<Map.Entry<String, Channel>> iterator = WebSocketServer.CHANNELS.entrySet().iterator();
        while (iterator.hasNext()) {
            Map.Entry<String, Channel> entry = iterator.next();
            if(ctx.channel().equals(entry.getValue())){
                System.out.println(entry.getKey() + " 断开连接");
                iterator.remove();
                WebSocketServer.GROUP.writeAndFlush(ResultFrame.ok(201,
                        WebSocketServer.CHANNELS.keySet()
                ));
            }
        }

}

@Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        try {
            TextWebSocketFrame frame = (TextWebSocketFrame) msg;
            JSONObject req = JSONObject.parseObject(frame.text());
            switch (req.getIntValue("code")) {
                // 客户端连接事件
                case 10000 -> ConnectionHandler.execute(ctx, req);
                case 10001 -> ChatHandler.execute(ctx, req);
                // code 不在枚举范围中
                default -> ctx.channel().writeAndFlush(ResultFrame.error(501, "无效请求!"));
            }
        } catch (Exception e) {
            ctx.channel().writeAndFlush(ResultFrame.error());
        }
    }
}
```

`ChatHandler.java`
```java
package com.zzzmh.websocket.server.handler;

public class ChatHandler {
    public static void execute(ChannelHandlerContext ctx, JSONObject req) {
        String nickname = req.getString("nickname");
        String message = req.getString("message");
        if (StringUtil.isNullOrEmpty(nickname)) {
            ctx.channel().writeAndFlush(ResultFrame.error(401, "昵称不能为空"));
            return;
        }
        if (StringUtil.isNullOrEmpty(message)) {
            ctx.channel().writeAndFlush(ResultFrame.error(401, "消息不能为空"));
            return;
        }
        // 群发消息 这里用code区分方法
        WebSocketServer.GROUP.writeAndFlush(ResultFrame.ok(202, JSONObject.of(
                "nickname", nickname,
                "message", message
        )));
    }
}
```

`ConnectionHandler.java`
```java
package com.zzzmh.websocket.server.handler;

import com.alibaba.fastjson2.JSONArray;
import com.alibaba.fastjson2.JSONObject;
import com.zzzmh.websocket.server.WebSocketServer;
import com.zzzmh.websocket.server.utils.ResultFrame;
import io.netty.channel.ChannelHandlerContext;
import io.netty.util.internal.StringUtil;

public class ConnectionHandler {
    public static void execute(ChannelHandlerContext ctx, JSONObject req) {
        // 初次连接 需要保存 user chanel
        String nickname = req.getString("nickname");
        if (StringUtil.isNullOrEmpty(nickname)) {
            ctx.channel().writeAndFlush(ResultFrame.error(401, "昵称不能为空"));
            return;
        }
        WebSocketServer.CHANNELS.put(nickname, ctx.channel());
        // 群发消息 这里用code区分方法
        WebSocketServer.GROUP.writeAndFlush(ResultFrame.ok(201,
                WebSocketServer.CHANNELS.keySet()
        ));
    }
}
```

前端也就100行代码
`index.html`
```html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <title>Netty WebSocket Client Demo</title>
</head>
<body style="display: flex;flex-direction: column;align-items: center;padding: 16px">

const websocket = new WebSocket("ws://localhost:7001");

//连接发生错误的回调方法
    websocket.onerror = function () {
        console("连接错误");
    };

//连接成功建立的回调方法
    websocket.onopen = function (event) {
        console("已连接");
    }

//连接关闭的回调方法
    websocket.onclose = function () {
        console("已断开");
    }

// 监听窗口关闭事件，当窗口关闭时，主动去关闭websocket连接，防止连接还没断开就关闭窗口，server端会抛异常。
    window.onbeforeunload = function () {
        websocket.close();
    }

// 接收到消息的回调方法
    websocket.onmessage = function (event) {
        console("已收到消息:" + event.data);
        const resp = JSON.parse(event.data);
        switch (resp.code) {
            case 201 :
                users(resp.data);
                break;
            case 202 :
                messages(resp.data.nickname, resp.data.message);
                break;
        }
    }

// 关闭连接
    function closeConn() {
        websocket.close();
    }

// 初始化数据
    function openConn() {
        const nickname = document.querySelector('#nickname').value;
        if (!nickname) {
            alert('昵称不能为空');
            return;
        }
        websocket.send(JSON.stringify({
            'code': 10000,
            'nickname': nickname
        }));
    }

// 发消息
    function sendMessage() {
        const nickname = document.querySelector('#nickname').value;
        const message = document.querySelector('#message').value;
        websocket.send(JSON.stringify({
            'code': 10001,
            'nickname': nickname,
            'message': message,
        }));
        console("已发送消息:" + message)
    }

// 控制台
    function console(string) {
        const area = document.querySelector('#console');
        area.value += getCurrentTime() + ' ' + string + '\n';
        area.scrollTop = area.scrollHeight;
    }

function messages(nickname, string) {
        const area = document.querySelector('#messages');
        area.value += getCurrentTime() + ' ' + nickname + ': ' + string + '\n';
        area.scrollTop = area.scrollHeight;
    }

function users(nicknames) {
        const area = document.querySelector('#users');
        area.value = '';
        nicknames.forEach(nickname => {
            area.value += nickname + '\n';
        })
        area.scrollTop = area.scrollHeight;
    }

// 时间戳
    function getCurrentTime() {
        const now = new Date();
        return `${now.getHours().toString().padStart(2, '0')}:${now.getMinutes().toString().padStart(2, '0')}:${now.getSeconds().toString().padStart(2, '0')}`;
    }
</script>
</body>
</html>
```

大致思路是，前端打开页面自动匿名连接socket，匿名可以收到聊天，但不能发消息。填入nickname就可以加入聊天，右侧textarea显示在线人员名单，加入聊天后再填写message点发送消息就可以正常聊天，所有人都是同步收到。

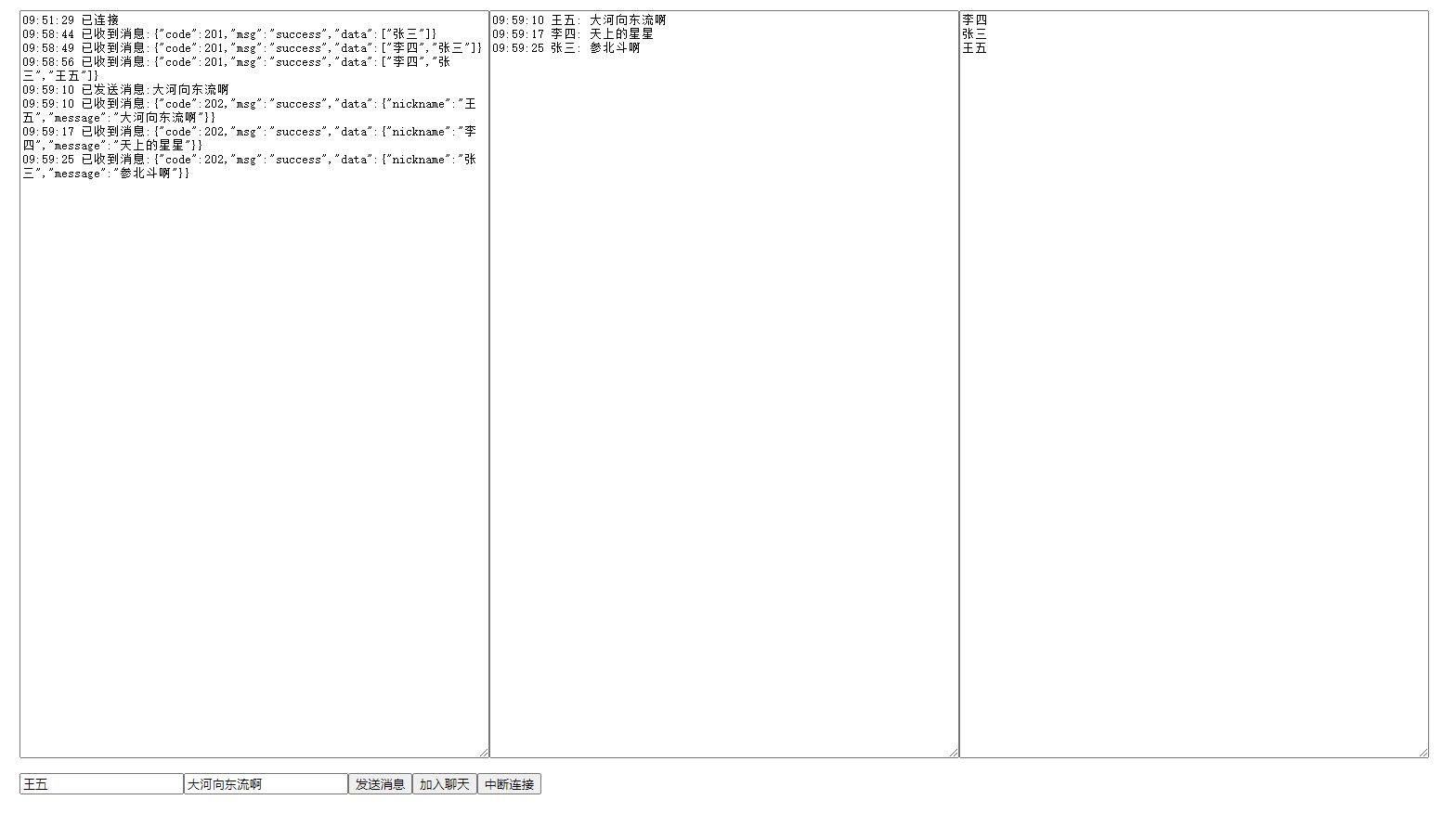

截图

![](/api/file/getImage?fileId=662b0abfda74050014040059)

![](/api/file/getImage?fileId=662b0abfda7405001404005a)

## END
先折腾到这里，还有客户端的下次在回来更新
累了

![](/api/file/getImage?fileId=64c9c860da74050014005b69)

送人玫瑰,手留余香
